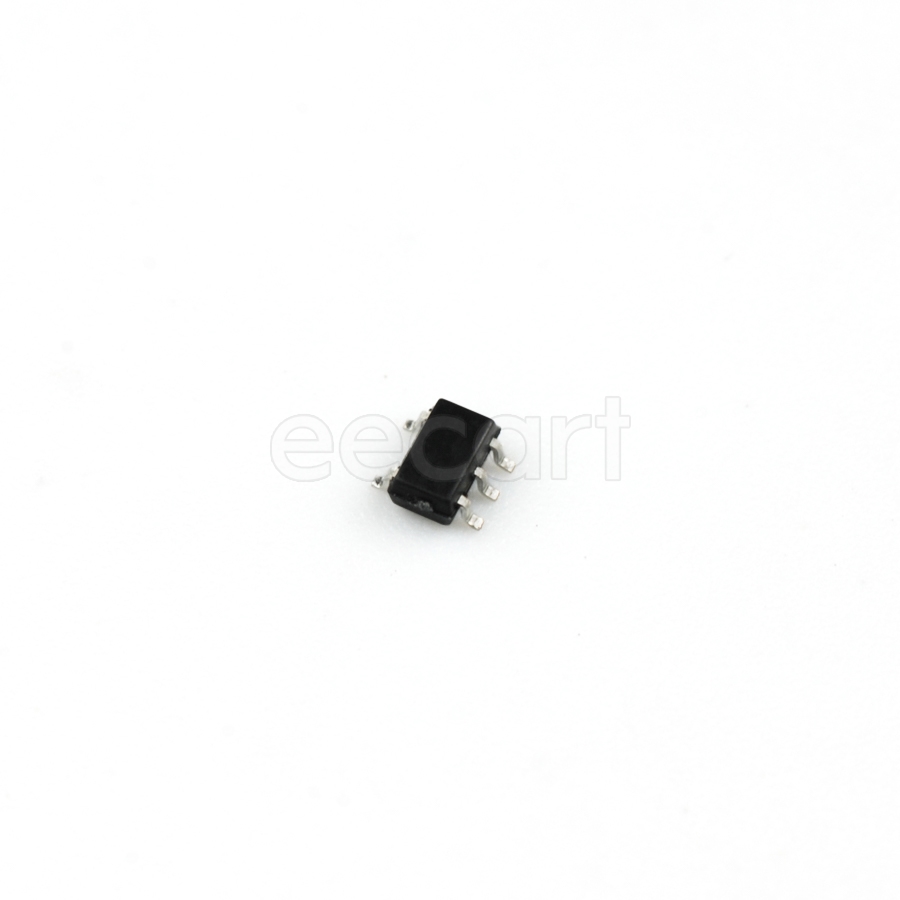

MSQA6V1W5T2G
Manufacturer:
On Semiconductor
Mfr.Part #:
MSQA6V1W5T2G
Datasheet:
Description:
ESD and Circuit Protection ICs SOT-323 SMD/SMT Working Voltage:3 V Breakdown Voltage:6.1 V 150 W 90 pF
| Parameter | Value |
|---|---|
| Capacitance | 90 pF |
| Voltage Rating (DC) | 6.6 V |
| Length | 2.2 mm |
| Width | 1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 5 |
| Leakage Current | 1 µA |
| Power Rating | 150 W |
| Composition(Kit Type) | Zener |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 1.35 mm |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 4 |
| Working Voltage | 3 V |
| Operating Supply Voltage | 1.25 V |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 150 W |
| Number of Channels | 4 |
| Number of Lines | 4 |
| Breakdown Voltage | 6.1 V |
| Max Reverse Leakage Current | 1 µA |
| Element Configuration | Common Anode |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6.1 V |
| Reverse Standoff Voltage | 3 V |
| Peak Pulse Power | 150 W |
| Power Line Protection | No |
| Number of Unidirectional Channels | 4 |
| Reverse Breakdown Voltage | 6.1 V |
| ESD Protection | Yes |
| Test Current | 1 mA |
| Max Breakdown Voltage | 7.2 V |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Voltage ESD Contact | 9 kV |
| Voltage ESD Air Gap | 16 kV |
| Diode Capacitance | 90 pF |
Stock: 1619
Distributors
pcbx
pcbxUnit Price$0.06586
Ext.Price$0.06586
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06586 | $0.06586 |
| 10 | $0.06175 | $0.61750 |
| 50 | $0.05789 | $2.89450 |
| 100 | $0.05455 | $5.45500 |
| 500 | $0.05141 | $25.70500 |
| 1000 | $0.05044 | $50.44000 |
| 3000 | $0.04949 | $148.47000 |
| 5000 | $0.04831 | $241.55000 |
